Description

Pall FSI Seamless-Absoluted Rated Filter Bags

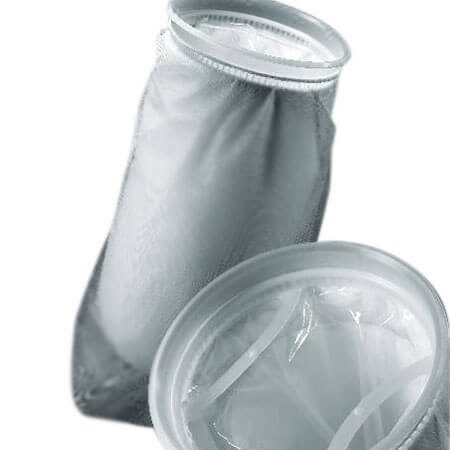

BOS Max Filter Bags

The innovative BOS Max Filter Bags are a heavy duty seamless filter bag that have an advanced design that provides extended life and increased efficiency with a greater depth filtration than conventional filter bags. It provides all of the benefits of the standard BOS filter bag with a semi-rigid microfiber insert that increases the dirt holding capacity of the filter while providing the absolute filtration of the BOS filter bag.

Features

• BOS MAX Heavy Duty Extended Life Bags contain a semi-rigid, microfiber cartridge insert for up to four times the life of standard BOS bags and are ideal for high-purity applications.
• Absolute rated 3-100 microns for high efficiency and consistent quality.
• Thermally-bonded microfibers contain no sizing, bonding adhesive, resin or silicone.
• Contaminant free to eliminate craters providing better surface results.
• PolyLoc® ring creates hermetic seal within a vessel housing to prevent liquid bypass.

Available Materials

• Polypropylene

Construction

• Seamless Construction

Maximum Operating Temperature

• 160° F (71° C)

Suggested Differential Pressure

• 35 PSIG maximum — dirty
• 10-15 PSIG optimum change out

Absolute (98%) Micron Rating

• 3, 5, 10, 25, 35, 50, 75, 100

Sizes

• #1: 7” x 16” (17.8 cm x 40.65 cm)
• #2: 7” x 32” (17.8 cm x 81.3 cm)

Other Specifications

• Plastic PolyLoc® Rings
