Description

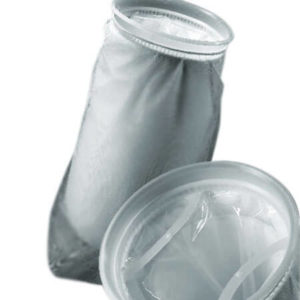

Pall FSI Seamless-Absoluted Rated Filter Bags

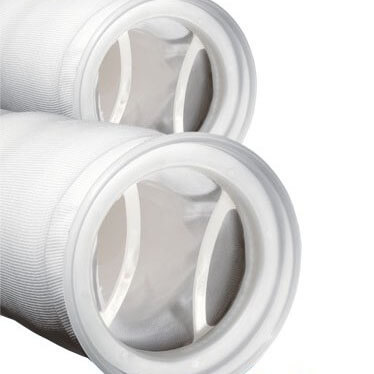

BOS Gradient Filter Elements

BOS Gradient Filter elements are the first of its kind, with seamless design and true gradient density. This absolute rated element provides users with the depth of a cartridge and the convenience of a bag. This 100% polypropylene microfiber product adsorbs up to 16 times its own weight in hydrocarbons (oils) and will last up to 18 times the life of other products (depending on particle distribution and application).

Features

Gradient Density Provides

• Up to 18 times extended life compared to other products, dependent upon particle distribution and application.
• Longer life means fewer bag changes which results in lower labor costs and less loss of product.
• Not compressible in operation providing greater dirt holding capacity.
• Designed for typical broad particle distribution applications.
• Will allow more efficient filtration (lower micron) without sacrificing product life.



Polypropylene Microfiber Material

• Adsorbs up to 16 times its own weight in hydrocarbons (oils).
• Inventory reduction. Eliminates need for stocking “oil” bags.
• Thermally bonded, with no lubricants or surface active agents.
• Available with NSF Standard 61 Certification.



Fits existing FSI standard basket

• No retrofit costs

Available Materials

• Polypropylene Microfiber

Construction

• Seamless Construction

Maximum Operating Temperature

• 160° F (71° C)

Suggested Differential Pressure

• 35 PSIG maximum — dirty
• 10-15 PSIG optimum change out

Absolute (98%) Micron Rating

• 3, 5, 10, 25, 50, 75, 100, 125

Sizes

• #2: 7” X 32” (17.8 cm X 81.32 cm)

Other Specifications

• Thermally Bonded Ring
• Available with NSF Standard 61 Certification

Item # BOSG50PM2P

Item # BOSG50PP2PG61
